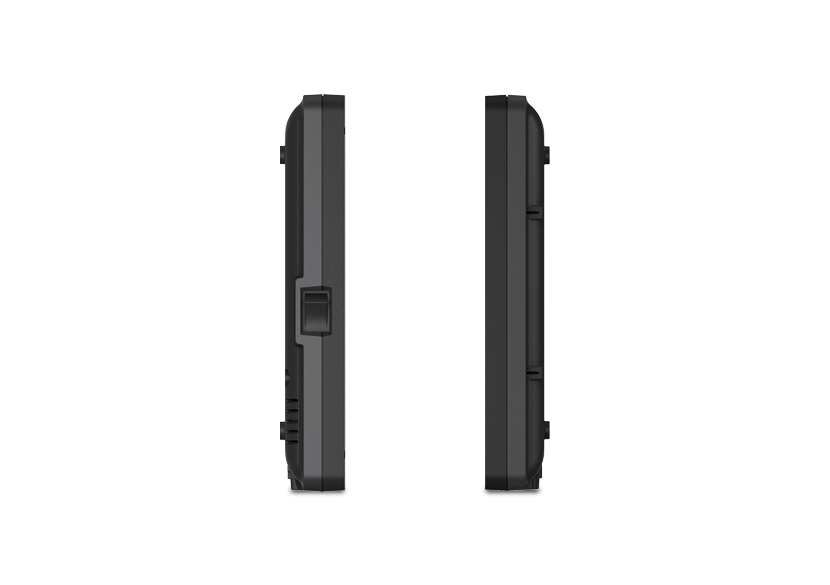

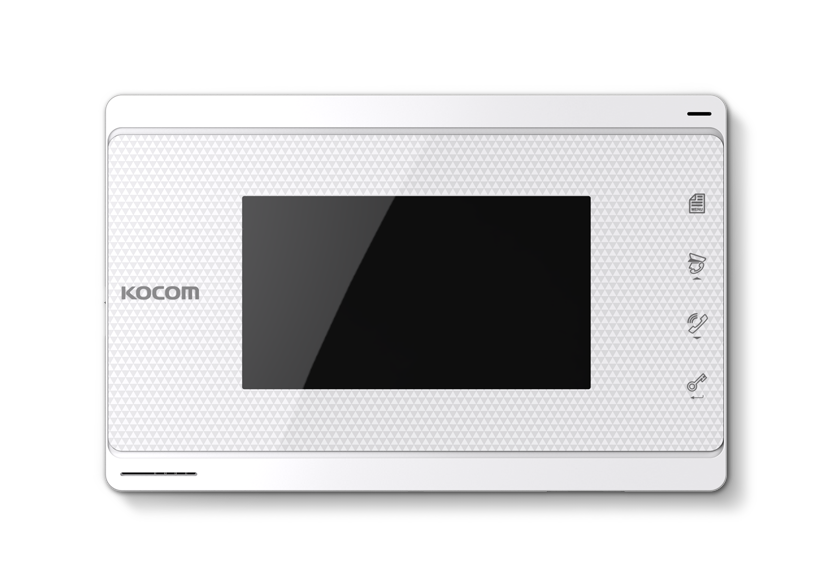

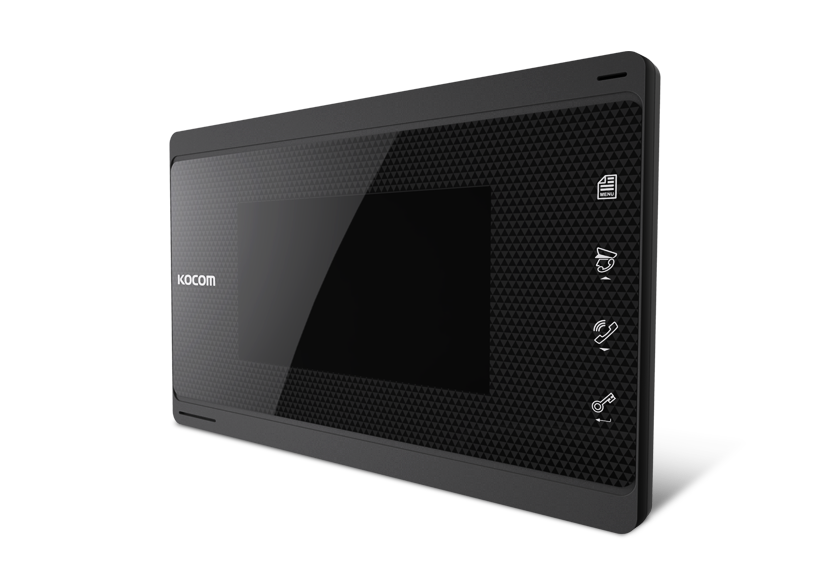

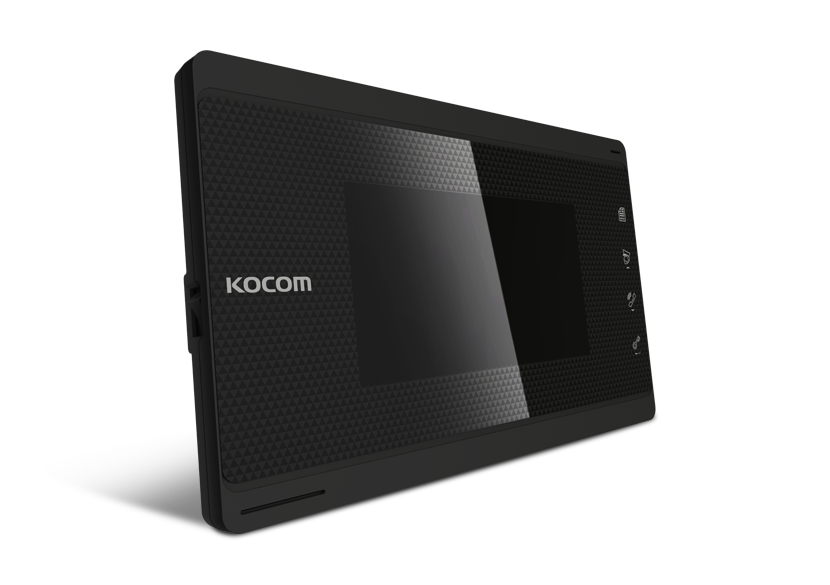

Monitor K6B VP-70C
Main Functions
  • - 7" Color digital LCD monitor
    - Easy to operate using OSD menu and icon button
    - Communication between Door camera, Guard phone and Lobby phone
    - Internal communication between indoor units
    - Security sensor connection (Motion, Magnetic) and alert available
  • 카카오톡으로 공유하기
  • 카카오스토리로 공유하기
  • 페이스북으로 공유하기




Specifications

LCD 7" Digital LCD
Power AC100V ~ 240V, 50Hz/60Hz
Power consumption 1.5W(When stand-by), 13W(When operating)
Wiring System line : 8 lines (polarity)
Lobby video : 2 wire (UTP/Coaxial)
Door camera : 4 wire
Mount Type Surface mount
Operating Temperature 0℃ ~ +40℃
Dimesion 271 (W) x 173 (H) x 26 (D)mm
