- Doorphone KDP-Q81F/KD-Q81T
-
Main Functions
- - Calling to & Phone call with sub-unit
at the entrance
- Phone calling and door opening
- Connection with doorlock by AC or DC type
- LED brightness control for checking
operating status

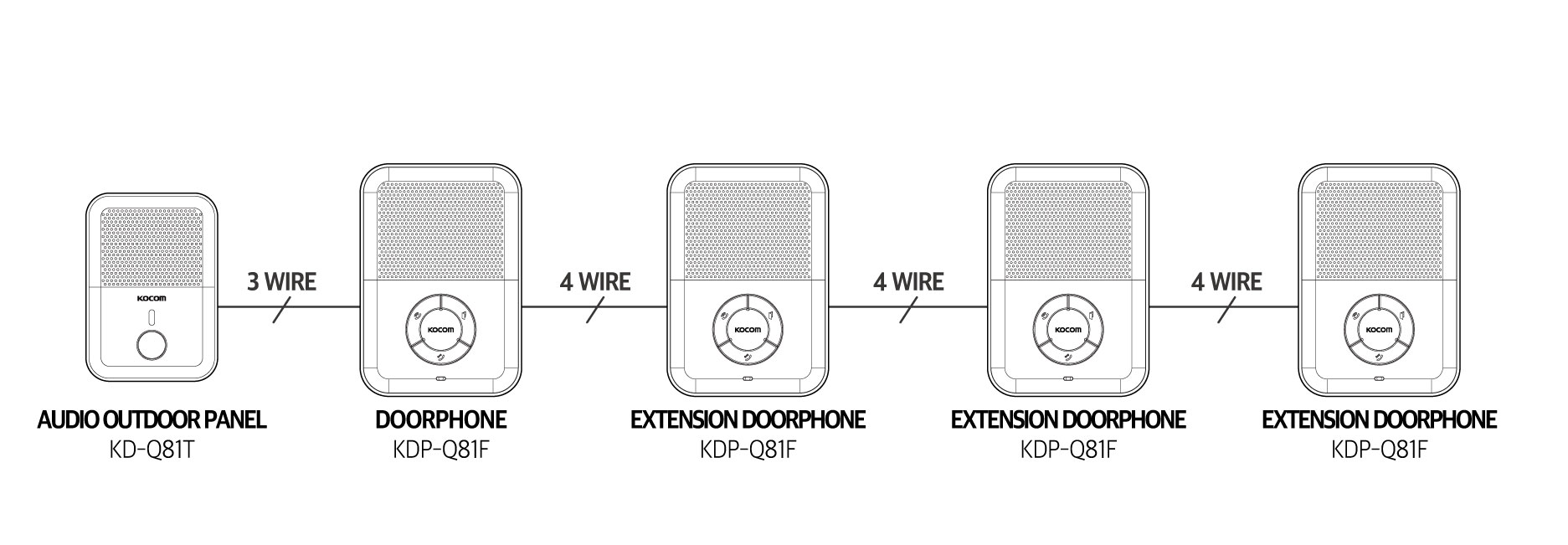

- Doorphones extension upto 4 units
- Mutual beeping & calling through doorphones
- - Calling to & Phone call with sub-unit
Specifications
| Model | KDP-Q81F/ KD-Q81T |
|---|---|
| Power source | KDP-Q81F : 100-240V~,50/60Hz KD-Q81T : DC 12±2V (Supply from doorphone) |
| Power consumption | KDP-Q81F : 1.3W(On stand by), 4W(Full load) KD-Q81T : 2W(MAX.) |
| Operating temperature | KDP-Q81F : 0℃ ~ + 40℃ KD-Q81T : -10℃ ~ + 50℃ |
| Dimension | KDP-Q81F : 119(W) X 170(H) X 30(D)mm KD - Q81T : 94(W)X 134(H)X 21.5(D)mm |
| Wiring | Audio outdoor panel : polarized 3 wire Door open : non-polarized 4 wire (power separate) |
| Mount type | Surface mount |
| Communication system | Hands-free type |
